Survey 2 CAD can rapidly capture the as built status of your facility using the latest equipment in 3D Laser measurement technology. We have the experience and knowledge of supplying 3D as built data to Oil & Gas, Chemical and Process Plant clients since 1996. We specialise in these fields and because we regularly convert our own scan data into 3D CAD models for clients, we know where to position our scanners to get the maximum coverage and ensure you get the quality of data you require. |
Survey 2 CAD employ experienced in-house 3D Laser Scanning Survey teams to rapidly capture field scan data, using the latest equipment, from small to very large projects, over the whole process plant spectrum.

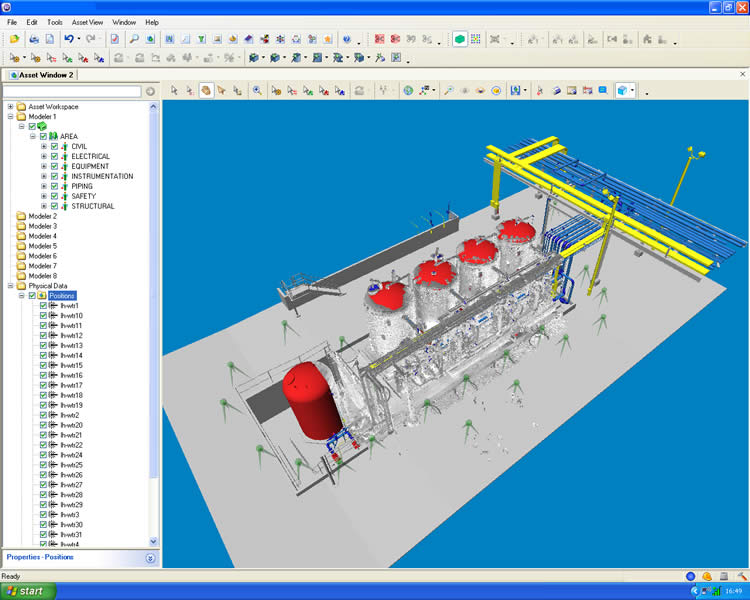

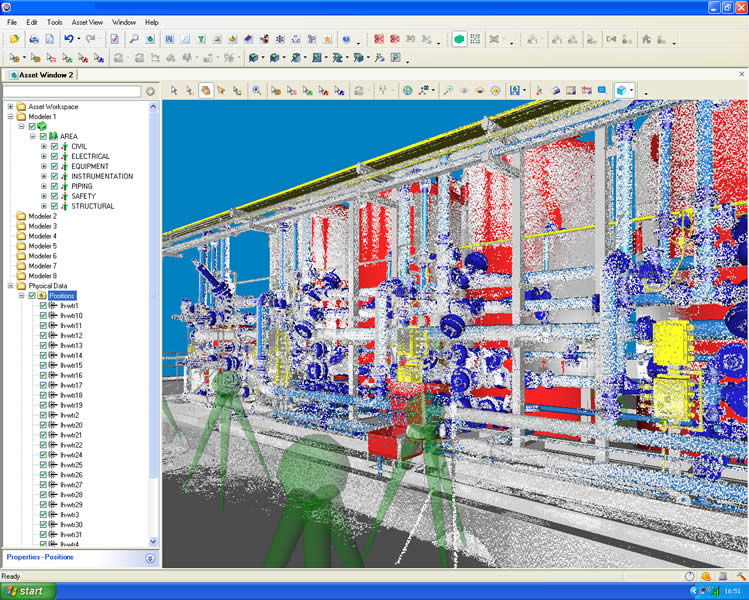

3D Scan data can then be delivered to the client as Point Cloud Data or converted to a 3D As built model for use with our client's CAD package.
Field Work Proceedure

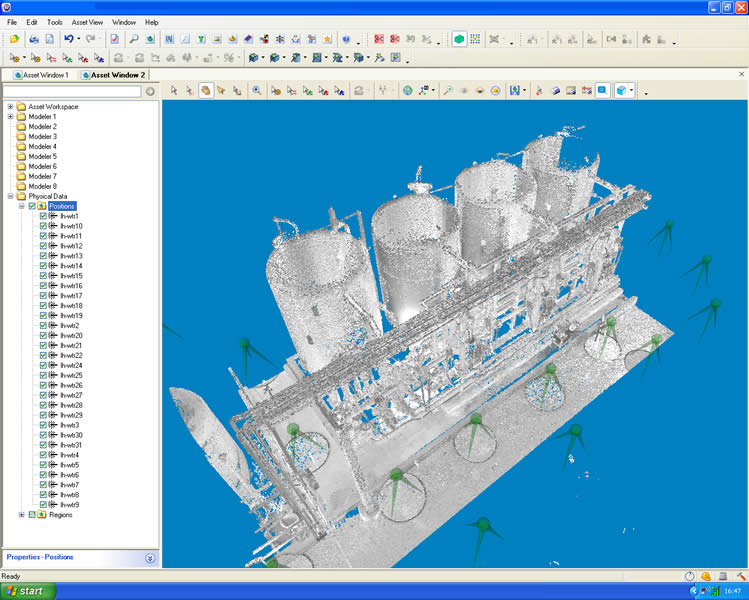

Laser Scans are captured from numerous locations, total numbers ranging from several to several thousand, dependant on the size of the facility. The scans are then registered using X,Y,Z positions visible within each scan and previously recorded using a Total Station Theodolite.

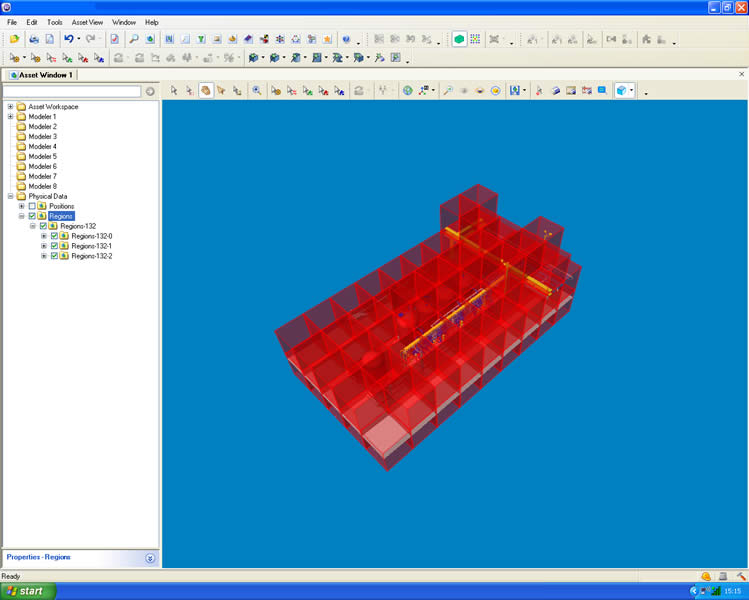

This improves overall survey control and the accuracy of the scan data. Individual scans may then be used or combined to form blocks of scan data for further processing into an As built CAD model.
Applications
Which projects would benefit from using 3D Laser Scanning?
Almost any project which requires accurate as built information can benefit from using our 3D solutions as a way to keep costs down and make cost-time savings.
Which Industries are currently using 3D Laser Scanning solutions?
Currently, Survey 2 CAD are providing 3D Laser Scanning measurement solutions to clients working in the following sectors:
Deliverables
How can my company use the information provided?
Survey 2 CAD offer a range of deliverable options to meet your as built data requirements. 3D Point Cloud Data can be delivered for use with packages such as LFM, RealityLinx and Cyclone.
Alternatively, you can have your 3D Scan Data converted into a 3D As built CAD model, suitable for use with all major 3D Design packages including P.D.M.S., AutoCAD, Microstation, P.D.S. and RealityLinx.
