Survey 2 CAD operate our own As built CAD modelling operation. We have the resources and the experience required to make sure your Laser Scan data is modelled quickly and cost effectively. We accept scan data for processing captured using FARO, Leica or Z&F Laser Scanners. We deliver 3D As built CAD models to P.D.M.S., AutoCAD, Microstation, P.D.S. and Realitylinx users. We can export files in X.M.L., DWG, DXF, DGN, SAT, ACIS, IGES and VR format.

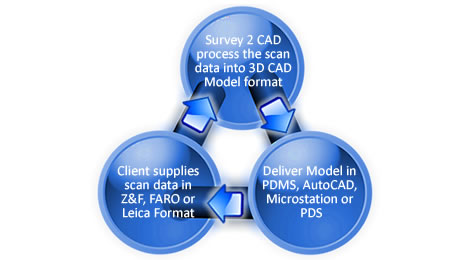

3D Laser Scan to As built CAD Model Diagram

Training

Our 3D CAD Technicians have undergone an extensive training program covering the core areas of 3D modelling from scan data.

Only after working through a series of training papers covering subjects such as the modelling of piping, valves and structural elements do our Technicians get to reach the final stage of their training where they get to generate a 3D CAD model using an actual project we previously delivered to a client.
